The GrandMA3 Full Size is the flagship of the MA3 console range, offering the ultimate lighting control experience for professionals. Features include 120 physical playbacks, 16 assignable x-keys and a dedicated master area. Huge multi-touch screen real-estate provides instant access to programming tools and is fully configurable to suit individual needs. The console includes 20 480 control parameters as standard, with a system-wide size scalable to 250 000 parameters with the use of additional MA3 processing units. The console is compatible with GrandMA2 and GrandMA3 software.

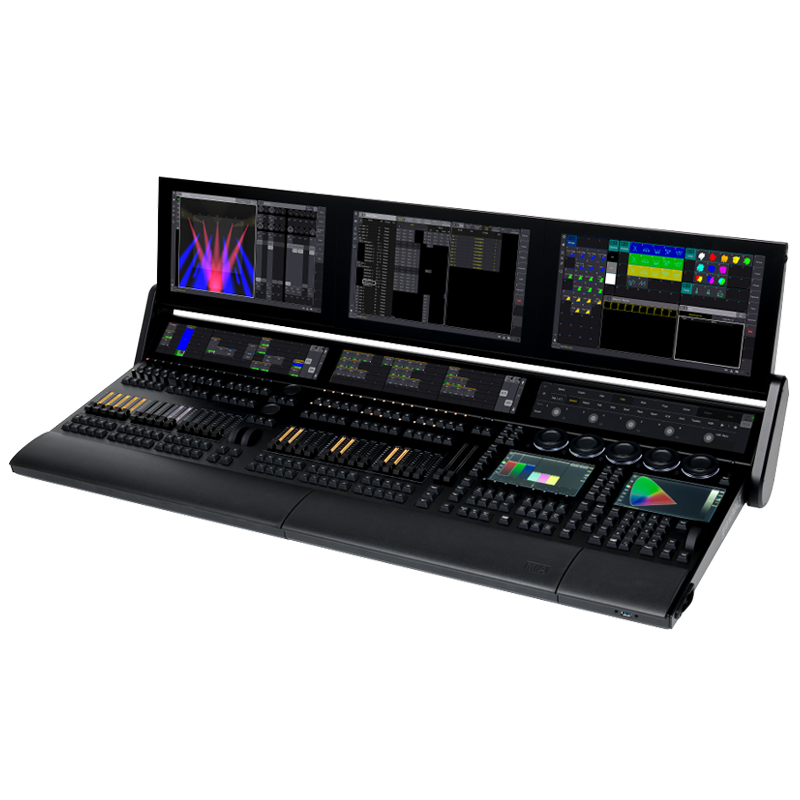

GRANDMA3 FULL SIZE

    • 3 Internal Monitor Multi-Touch screens

    • 3 Internal Letterbox Multi-Touch Screens

    • 2 Internal Command Multi-Touch Screens

    • 71 Rotary Backlit Encoders

    • 5 Backlit Dual Encoders

    • 30 Backlit Motorized Faders

    • 16 Assignable X-Keys

    • Integrated Keyboard Drawer

    • Built-In UPS Power Supply

    • 20,480 Control Parameters (Mode 3)

    • 8,192 Control Parameters (Mode 2)

    • Scalable Control For Up To 250 000 Parameters With MA3 Processing Units

    • 6 DMX Outputs, 1 DMX Input

    • 3 EtherCON Connectors

    • 1 Linear Timecode XLR Input

    • MIDI In/Out (5pin DIN)

    • Audio XLR Input

    • 2 DisplayPort 1.2 For External Screens

    • 6 USB Connectors

    • True1 In

    • 2 Gooseneck Lights

    • Dimensions: 50 x 22 x 8 in (1,256 x 539 x 181 mm) (Screen Folded)

    • Weight: 98 lb (44 kg)

    • Supply Voltage: AC 100 - 240 V, 50/60 Hz

    • Max Power Consumption: 360 W

    • Integrated UPS Power Supply
