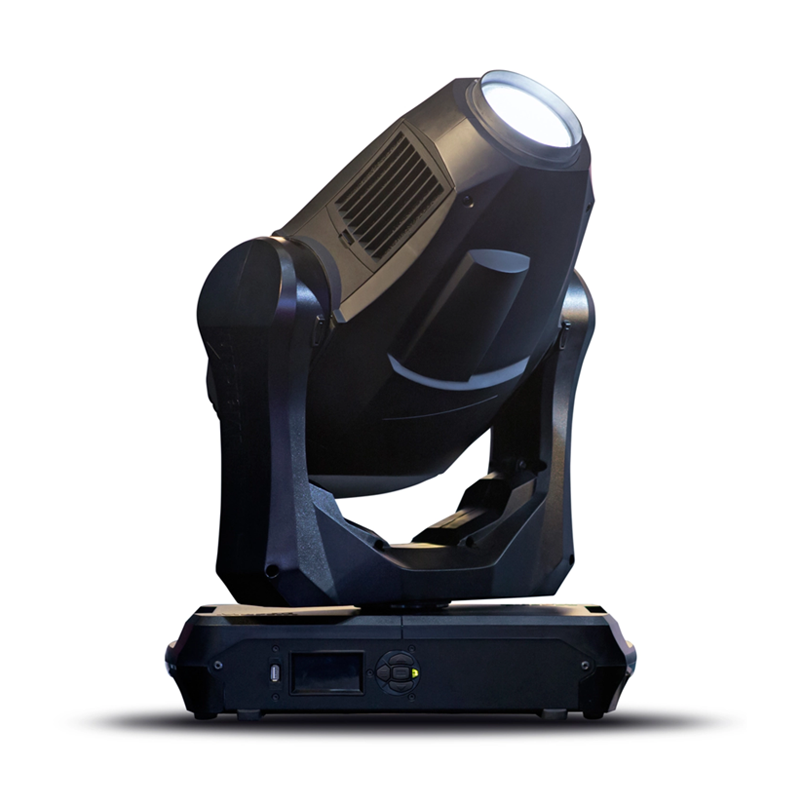

Martin mac Quantum Profile

    • Light Source: 1 LED, 475 W, 6000 K

    • LED refresh rate: 3000 Hz

    • Zoom range: 12° to 36° (1:3)

    • Output: 12,700 lumens

    • Color mixing: CMY

    • Color wheel: 6 color filters plus open

    • Rotating three-facet prism

    • Rotating gobo wheel: 6 interchangeable gobos plus open

    • Static gobo wheel: 10 gobos plus open

    • Iris: 0 - 100%, pulse effects

    • Zoom: Motorized

    • Shutter: Electronic, with variable speed regular and random strobe

    • Pan: 540° Tilt: 268°

    • Length: 452 mm (17.8 in.)

    • Width: 431 mm (17.0 in.)

    • Height: 642 mm (25.3 in.)

    • Weight: 23.2 kg (51.1 lbs.)

    • Power Consumption: Max: 750 W, Typical: 576 W

    • Typical current draw: 4.8 A @ 120 V , 2.8 A @ 208 V

    • DMX channels: 19/27

    • Control protocol: DMX

    • Power input: PowerCon

    • DMX in/out: 5-pin XLR

LED profile fixture that combines top-quality white light with a fast, smooth CMY color mixing system and crisp gobo projection on surfaces as well as mid-air.
