This networkable audio expander adds 48 inputs with professional-grade microphone preamps and 16 XLR line outputs to your system, all simultaneously available at 96kHz resolution.

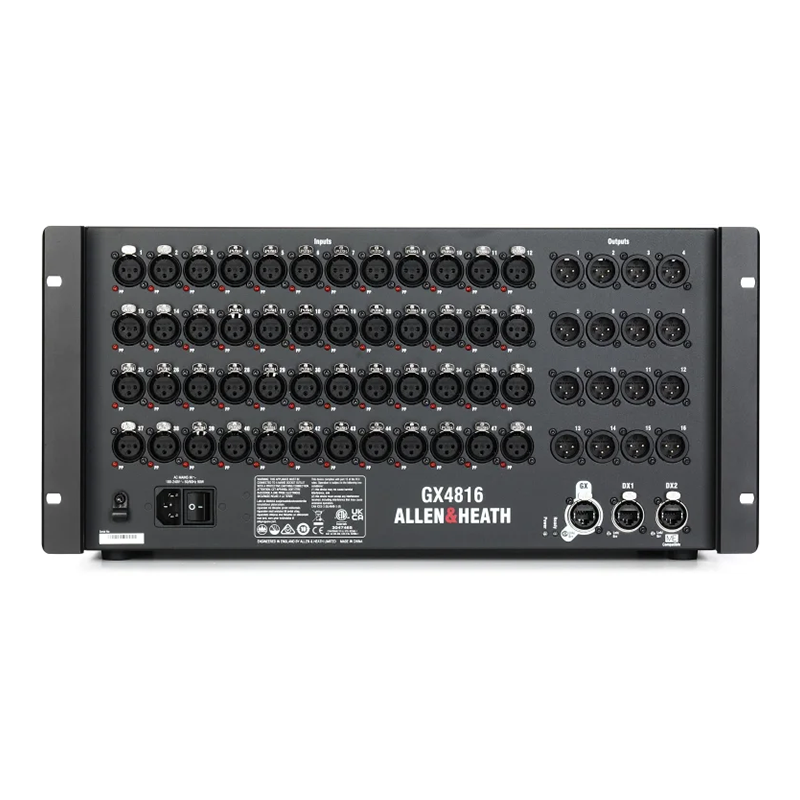

Allen & Heath GX4816 I/O expander

    • 48 XLR Inputs

      • Mic Preamps

      • Individually Selectable Phantom Power

    • 16 XLR Outputs

    • 96kHz I/O Expansion

    • 1 Primary EtherCon Port for Control

    • 2 DX EtherCon Expansion Ports

    • Compatible with A&H dLive and SQ Mixing Consoles

    • 5U Stagebox Form Factor

    • 48 XLR Inputs

      • Balanced XLR

      • +48V Phantom Power

      • Mic/Line Preamp: Fully Recallable

    • 16 XLR Outputs

      • Balanced Analog XLR

    • 1 Primary EtherCon Port for Control

    • 2 DX EtherCon Expansion Ports

    • Power Input: IEC

    • Length - 558mm/22"

    • Width - 365mm/14.4"

    • Height - 347mm/13.7"

    • Weight - 10.2kg/22.5lbs

    • Supply Voltage: 100-240V AC, 50/60Hz

    • Max Power Consumption: 80 W
