A 22-channel digital mixer with capabilities that far exceed the confines of its compact size. Providing crystal-clear 96kHz audio, which is bolstered by 16 excellent-sounding mic preamps and eight analog outputs.

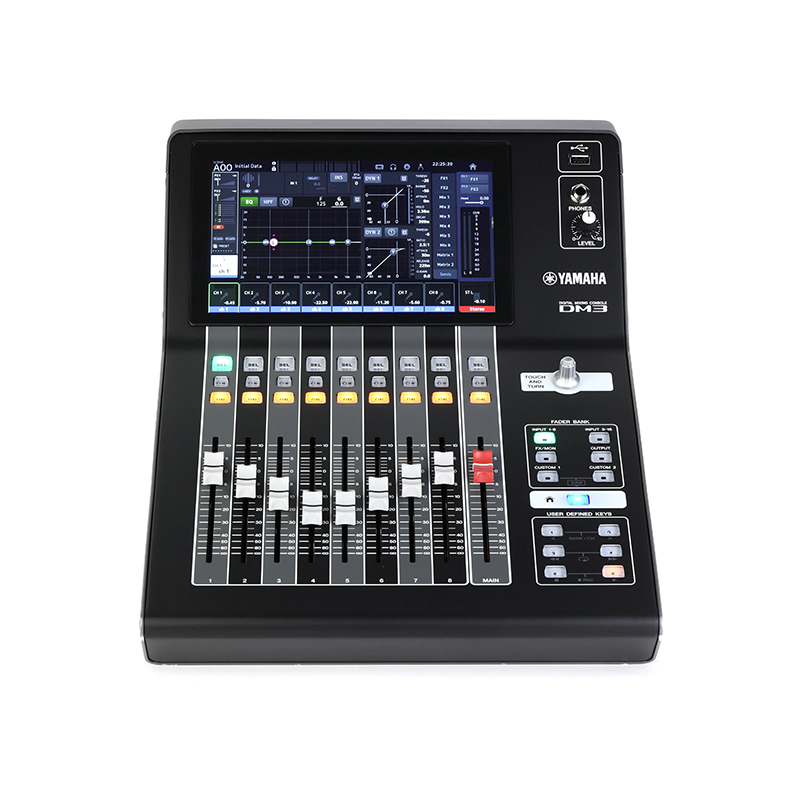

Yamaha DM3-D
-
22 Input Channels
16 Mono Channels
1 Stereo Channel
2 Stereo FX Returns
6 Mono or 3 Stereo Mixes, 2 Matrixes, and 1 Stereo Bus
96kHz Sampling Rates
16 Mic Preamps and 8 Analog Outputs
Onboard DSP Effects
Dante Card, Supports I/O Boxes
-
8+1 Motorized Faders / 6 Layers
16 Built-In Mic Preamps (12x XLR, 4x XLR-1/4” Combo)
6 Assignable Soft Keys
9” Touchscreen with Touch-and-Turn Knob
Inputs: 16 Mono, 1 Stereo, 2 FX Return
Outputs: 8 XLR
Yamaha PA-L500 AC/DC Power Input
-
Width - 320mm/12.5"
Depth - 455mm/17.9"
Height - 140mm/5.5"
Weight - 6.4kg/14.3lbs
-
Supply Voltage: 100-240V AC, 50/60Hz
Max Power Consumption: 43 W
